Sugar Bottle 2 Cavity PET Blowing Machine Jar Making 3 Phase 380V

Name: Sugar Bottle 2 Cavity PET Blowing Machine Jar Making 3 Phase 380V
Brand: Eceng
Price: 1 USD

Best Sugar Bottle 2 Cavity PET Blowing Machine Jar Making 3 Phase 380V wholesale

Place of Origin : Jiangsu, China

Brand Name : Eceng

Model Number : J4

Certification : CE&ISO

Packaging Details : Wooden package

Supply Ability : 10 Set/Sets per Month

MOQ : 1set

Payment Terms : L/C, T/T, Western Union

Delivery Time : 30days

Plastic Processed : PET

Application : bottle, plastic bottle

Blow Moulding Type : Stretch Blow Moulding

Year : 2019

Voltage : 3phase 380V/220V

Dimension(L*W*H) : 4.1x1.6x1.9(m)

Hollow part volume : 2L

Power (kW) : 32

Weight (KG) : 3900 KG

Automation : Automatic

Machinery Test Report : Provided

Automatic : Yes

Color : orange

Output : 2400-2600BPH

Port : Shanghai

Contact Now

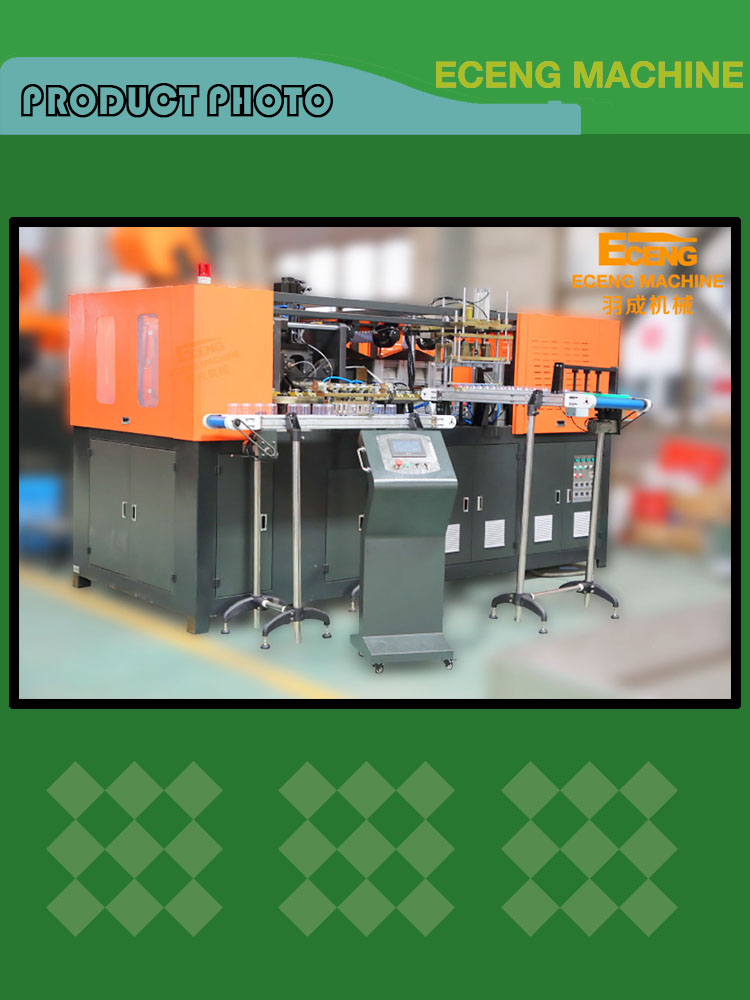

bottle making machine / bottle stretch blowing machine J4

Eceng Factory Manufacture pet blow molding machine 2 cavity jar sugar bottle blowing machine

Item		J4
Bottle type specification	Cavity	4
	Theory output	2400-2600
	Max.volume	2L
	Bottle mouth maximum overall DIdiameter	28-80mm
	Bottle biggest diameter	100mm
	Bottle maximum height	330mm
Power specifications	Light tube quantity	32pcs
	Light tube power	1KW
	Maximum heating power	32KW
	All electric machine installation	42KW
	Actual consumption	30%--60%
Air pressure specification	Work pressure	7-9kg/cm2
	Low-pressure gas consumption	1600L/min
	Blow bottle pressure	25-35kg/cm2
	Higher -pressure gas consumption	3000Ltr/min
Forzen water specification	Work pressure	5-6 kg/cm2
	Temperature range	10℃
	Consumption	8000kcal/hr
	Forzen water flow	138L/min
Machine specification	Size of the machine	4.1x1.6x1.9
Machine specification	Weight of the machine	3.9ton

company introduction

Our company, Zhangjiagang Eceng Machinery Co., Ltd. we are a special manufacturer of PET bottle blowing machine,blow molding machine and mould, We have been engaged in moulds for years, and have gained a well-known reputation from our customers who spread all over the world.

We Warmly Welcome Customers All Over The World To Our Company!
